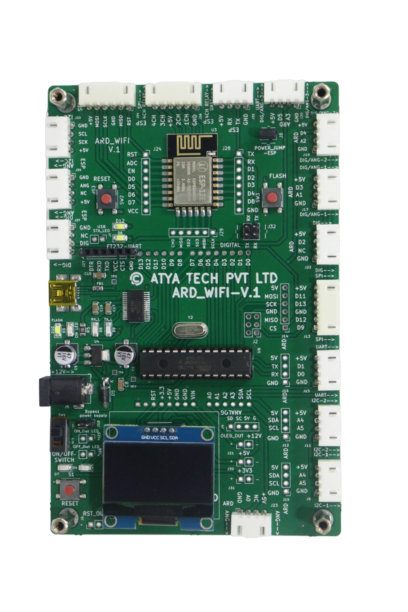

Board Name:ATYA TECH PVT LTD ARD_WIFI-V.1
ABSTRACT:
ARD_WIFI-V.1 is an open-source platform used for building electronics projects. ARD_WIFI-V.1 consists of a physical programmable circuit board (often called a microcontroller) and a piece of software, or IDE (Integrated Development Environment) that runs on your computer, used to write and upload computer code to the physical board.
The ARD_WIFI-V.1 platform has become quite popular with people just starting with electronics, and for good reason. Unlike most previous programmable circuit boards, the ARD_WIFI-V.1 does not need a separate piece of hardware (a programmer) to load new code onto the board -- you can use a USB cable. Additionally, the Arduino IDE uses a simplified version of C++, making it easier to learn to program. Finally, ARD_WIFI-V.1 provides a standard form factor that breaks out the functions of the microcontroller into a more accessible package.
Keywords:Customized Board with Wi-Fi Integration, ESP8266 (ESP12E), IoT Applications, Wireless Communication, Smart Devices, Embedded Systems, Home Automation, Environmental Monitoring, Industrial Control.
FEATURES:
1. Microcontroller: ATMEGAA4809.
2. Digital I/O Pins: 14 (6 Provide PWM Output).
3. Analog Input Pins: 6.
4. DC Current per I/O Pin: 20mA.
5. DC Current for 3.3V Pin: 50mA.
6. Flash Memory: 32 KB (ATMEGAA4809).
7. SRAM: 2 KB (ATMEGAA4809).
8. EEPROM: 1024 Bytes (ATMEGAA4809).
9. Clock Speed: 16MHz.
10. Dimensions: 143.25mm x 92.50mm.
11. Weight: 120gms.
SPECIFICATIONS:
1. Microcontroller: ATMEGA328P.
2. IC Wi-Fi: ESP8266 (ESP12E).
3. USB-TTL converter: FTDI232.
4. Power Out: 5 Volt 800 mA.
5. Power In: 5 Volt (500 mA max).
6. Power In: VIN/DC Jack: 9-24 Volts (1A mA).
7. Power Consumption: 5 Volts 800mA.
8. Logic Level: 5 Volt.
9. Wi-Fi: Wi-Fi 802.11 b/g/n, 2.4GHz-2.5GHz (2400M-2483.5M).
10. USB: Mini USB.
11. Clock Frequency: 16MHz For ATMEGA328P.
12. Clock Frequency: 80MHz / 160MHz.
13. Compatible with ATMEGA328P modules and sensors.
14. Operating Voltage: 5V.
15. Digital I/O: 14.
16. Analog I/O: 6.
17. Memory size: 32Mb.
18. Interface Type: Serial IOTA.
19. Operating temperature: -40C°/+125C°.
20. Antenna: Built-internal antenna.
Pinout: ATMEGA328P:
| ARDUINO DIGITAL PIN | INTERFACE |
|---|---|
| D0 (RX) | D0 (RX) UART conn / Commc. JMP conn. with WIFI |
| D1 (TX) | UART conn / Commc. JMP conn. with WIFI |
| D2 | Digital one pin connector |
| D3 | Digital /Analog pin connector-1 |
| D4 | Digital /Analog pin connector-2 |
| D5 | Digital /Analog pin connector-3 |
| D6 | Blanck |
| D7 | Output Led |
| D8 | Blanck |
| D9 | (CS) SPI connector |
| D10(SS) | Blanck |
| D11(MOSI) | SPI connector / ICSP connector |
| D12(MISO) | SPI connector / ICSP connector |
| D13(SCK) | SPI connector / ICSP connector |
| ARDUINO ANALOG PIN | INTERFACE |
|---|---|
| A0 | Analog one pin connector |
| A1 | Digital /Analog pin connector-1 |
| A2 | Digital /Analog pin connector-2 |
| A3 | Digital /Analog pin connector-3 |
| A4(SDA) | I2C connector - 1, 2 / OLED Display / Output OLED connector |
| A5(SCL) | I2C connector - 1, 2 / OLED Display / Output OLED connector |
Interface Connector Pins:
| I2C conn | 2 |
| SPI conn | 1 |
| UART conn | 1 |
| DIGITAL conn | 1 |
| ANALOG conn | 1 |
| DIG/ANG conn | 3 |
| LED | 1 |
| OLED conn | 1 |
Pinout: ESP8666 (ESP12E)
| ESP-12E | pinout | Connection |
|---|---|---|
| 1 | Reset | RST switch / SPI connector |
| 2 | ADC | Analog one pin connector |
| 3 | CH_PD(EN) | Blanck |
| 4 | GPIO16(D0) | 4CH RELAY |
| 5 | GPIO14(D5) | SCLK-SPI_conn |
| 6 | GPIO12(D6) | MISO-SPI_conn |
| 7 | GPIO13(D7) | MOSI-SPI_conn |
| 8 | VCC(+3V3) | 3V3 |
| 9 | CS0(CMD) | Blanck |
| 10 | MISO | 4CH RELAY |
| 11 | GPIO9(SD2) | Digital one pin connector |
| 12 | GPIO10(SD3) | LED OUTPUT |
| 13 | MOSI | 4CH RELAY |
| 14 | SCLK | 4CH RELAY |
| 15 | GND | GND |
| 16 | GPIO15 | PD |
| 17 | GPIO2 | PU |
| 18 | GPIO0 | Flash switch |
| 19 | GPIO4(SDA) | I2C_conn |
| 20 | GPIO5(SCL) | I2C_conn |
| 21 | GPIO3(RX) | UART_conn/commc jmp with arduino |
| 22 | GPIO1(TX) | UART_conn/commc jmp with arduino |
Interface Connector Pins:
| UART_connector | 1 |
| I2C_connector | 1 |
| SPI_connector | 1 |
| ANG_connector | 1 |
| DIG_connector | 1 |
| OUTPUT LED | 1 |
| 4CH RELAY_connector | 1 |
APPLICATIONS:
1. Pharmaceuticals: Environmental Monitoring, Lab Equipment Automation, Automated Dispensers.
2. Agriculture: Smart Irrigation Systems, Crop Monitoring, Livestock Management.
3. Healthcare: Patient Monitoring, Smart Hospital Beds, Telemedicine.
4. Environmental Monitoring: Weather Stations, Air Quality Monitoring, Soil Moisture Monitoring.
5. Remote Data Logging: Sensor Networks, Energy Monitoring,
6. Industrial Automation: Process Monitoring, Predictive Maintenance.
For more info: Refer the Datasheets!
