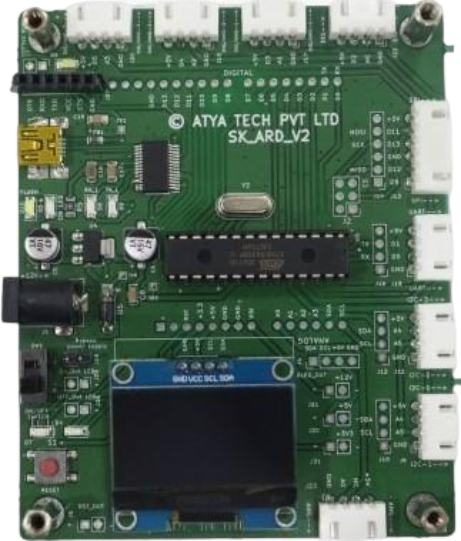

Board Name:ATYA_TARS SK_ARD_V2


ABSTRACT:


Welcome to the Beginner's Starter Kit Guide, an ideal entry point for newcomers eager to delve into the world of Arduino. This comprehensive kit features an Arduino-compatible board integrated with a diverse array of sensors on a single PCB, offering both convenience and versatility. With modules neatly interconnected via PCB stamp holes, setup requires no additional cables initially, though detachable modules allow for enhanced flexibility if desired. Whether you're exploring basic projects or venturing into more advanced applications, this guide provides a solid foundation in using the Starter Kit with the Arduino IDE. From robotics to IoT systems, the kit supports seamless experimentation across various sensor functionalities critical for automation, safety, and user interaction. Embracing innovation in electronics and automation, this compendium empowers users to unleash creativity and explore the endless possibilities of Arduino. The Beginner's Starter Kit Guide showcases the versatility and innovation potential by seamlessly integrating Arduino microcontrollers with a diverse array of sensors, offering flexibility for both novice experimenters and advanced users.


Keywords: Customized Board, IoT Applications, Wireless Communication, Smart Devices, Embedded Systems, Home Automation, Environmental Monitoring, Industrial Control.




FEATURES:


1. Microcontroller: ATMEGA328P.

2. Digital I/O Pins: 14 (6 Provide PWM Output).

3. Analog Input Pins: 6.

4. DC Current per I/O Pin: 20mA.

5. DC Current for 3.3V Pin: 50mA.

6. Flash Memory: 32 KB (ATmega328P).

7. SRAM: 2 KB (ATmega328P).

8. EEPROM: 1 KB (ATmega328P).

9. Clock Speed: 16MHz.

10. Dimensions: 121mm x 93mm.

11. Weight: 120g.


SPECIFICATIONS:


1. Microcontroller: ATMEGA328P.

2. Operating Voltage: 5V.

3. Input Voltage(recommended): 7-12V.

4. Digital I/O Pins: 14 (6 Provides the PWM Output).

5. Analog Input Pins: 6.

6. DC Current per I/O Pin: 20mA.

7. USB: Mini USB.

8. DC Current for 3.3V Pin: 50mA.

9. Flash Memory: 32 KB (ATmega328P) of which 0.5 KB used by bootloader.

10. SRAM: 2 KB (ATmega328P).

11. EEPROM: 1 KB (ATmega328P).

12. Clock Speed: 16MHz.

13. Compatible with ATMEGA328P modules and sensors.

14. Up to 20 MHz Speed.

15. Connectivity I2C, SPI, UART, USART.


Pinout: ATMEGA328P:


ARDUINO DIGITAL PIN INTERFACE
D0 (RX) UART (RX) connector
D1 (TX) UART (TX) connector
D2 Digital one pin connector
D3 Digital /Analog pin connector-1
D4 Digital /Analog pin connector-2
D5 Digital /Analog pin connector-3
D6 Blank
D7 Output Led
D8 Blank
D9 (CS) SPI connector
D10(SS) Blank
D11(MOSI) SPI connector / ICSP connector
D12(MISO) SPI connector / ICSP connector
D13(SCK) SPI connector / ICSP connector
ARDUINO ANALOG PIN INTERFACE
A0 Analog one pin connector
A1 Digital /Analog pin connector-1
A2 Digital /Analog pin connector-2
A3 Digital /Analog pin connector-3
A4(SDA) I2C connector - 1, 2 / OLED Display / Output OLED connector
A5(SCL) I2C connector - 1, 2 / OLED Display / Output OLED connector

Interface Connector Pins:

I2C conn 2
SPI conn 1
UART conn 1
DIGITAL conn 2
ANALOG conn 1
DIG/ANG conn 3

APPLICATIONS:


  • Motor control, Power regulation, Peripheral interface, Display devices.
  • IoT (Internet of Things).
  • Designing of basic circuit designs.
  • Development of Automation System.
  • Aerospace:Advancing space and aviation technology for exploration and innovation.
  • Agriculture: Growing crops and livestock for food and resource sustainability.
  • Automotive:Designing and manufacturing vehicles for transportation and mobility solutions.
  • Consumer Electronic:Creating gadgets for daily life and personal convenience.
  • Embedded Systems: Integrating computing power into devices for specialized functions.
  • Medical Devices:Enhancing diagnosis, treatment, and monitoring for better health.
  • Oil and Gas: Extracting and refining energy resources for global demand.
  • Semi Conductor:Essential components for electronics, enabling technology and innovation.
  • Industrial Use: Robotics, power supply management, and process control systems.
  • Military: Radar systems, missile guidance, and secure communication systems.
  • Renewable Energy: Solar panel inverters, wind turbine controllers, and energy storage management systems.

    • 1.3-Inch-I2C-IIC-OLED
    16MHz crystall
    ATMEGA48P
    diode-1N4007
    FT232RL
    LM393
    NCP1117-3.3v
    NCP1117LP-5.5v-D
