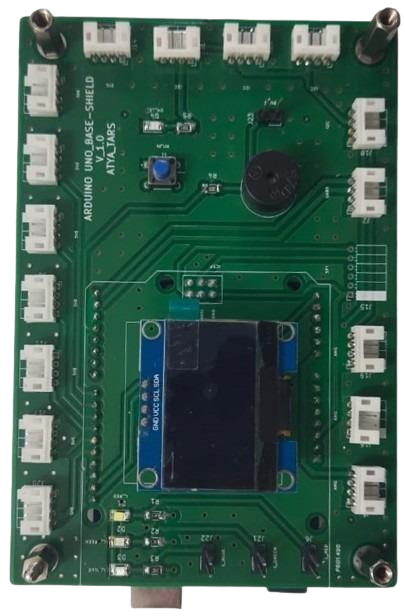

Board Name: ARDUINO UNO_BASE-SHIELD V_1.0

ABSTRACT:

The Arduino Base Shield is a versatile accessory designed to enhance the functionality of Arduino boards by simplifying the interfacing of sensors, actuators, and modules. It features various input and output ports, including analog and digital pins, servo motor connectors, and communication interfaces like I2C and UART, enabling seamless integration with numerous components. This plug-and-play solution reduces wiring complexity and ensures compatibility with a broad range of devices, equipped with built-in protection features such as overcurrent and reverse polarity protection. Ideal for rapid prototyping, educational projects, and experimental work, the Arduino Base Shield empowers users to focus on innovation and development by streamlining hardware connections.

Keywords: Customized Board, IoT Applications, Wireless Communication, Smart Devices, Embedded Systems, Home Automation, Environmental Monitoring, Industrial Control.

FEATURES:

1. Ease of Use:

2. Comprehensive Connectivity

3. Built-in Protection

4. Plug-and-Play Solution

5. Rapid Prototyping

6. Robust Design

7. Experimental Flexibility

8. Educational Value

9. Rapid Prototyping

10. Standardized Connectors

SPECIFICATIONS:

1. Compatibility: Supports a variety of Arduino boards including Uno, Mega, Leonardo, and others.

2. Input/Output Ports:

  • Digital I/O Pins: Typically, 14 pins (D0 – D13)
  • Analog Input Pins: Usually 6 pins (A0 – A5)
  • PWM Output Pins: 6 pins (D3, D5, D6, D9, D10, D11)



3. Communication Interfaces:

  • I2C: SDA and SCL pins for I2C communication
  • UART: TX and RX pins for serial communication



4. Power Supply:

  • Input Voltage: 7-12V via DC jack or USB
  • Operating Voltage: 5V



5. Servo Motor Connectors: Dedicated connectors for connecting servo motors directly to the shield

6. Built-in Protection:

  • Overcurrent Protection: Prevents damage from excessive current draw
  • Reverse Polarity Protection: Protects against incorrect power supply connections



7. Dimensions: Standard dimensions to fit most Arduino boards

8. Standardized Pin Headers: Ensure compatibility with a wide range of Arduino-compatible devices and modules

9. Mounting Holes: Pre-drilled holes for secure attachment to other components or enclosures

10. 10. Indicators:

  • Power LED: Indicates when the shield is powered on
  • Status LEDs: Provide visual feedback for various operations and statuses



11. Environmental Conditions:

  • Operating Temperature: Typically, 0°C to 70°C
  • Storage Temperature: Typically -40°C to 85°C



12. Weight: Light and portable, usually under 50 grams

Pinout: BASE SHIELD

APPLICATIONS:

  • Motor control, Power regulation, Peripheral interface, Display devices.
  • IoT (Internet of Things).
  • Designing of basic circuit designs.
  • Development of Automation System.
  •
  • Aerospace:Advancing space and aviation technology for exploration and innovation.
  • Agriculture: Growing crops and livestock for food and resource sustainability.
  • Automotive:Designing and manufacturing vehicles for transportation and mobility solutions.
  • Consumer Electronic:Creating gadgets for daily life and personal convenience.
  • Embedded Systems: Integrating computing power into devices for specialized functions.
  • Medical Devices:Enhancing diagnosis, treatment, and monitoring for better health.
  • Oil and Gas: Extracting and refining energy resources for global demand.
  • Semi Conductor:Essential components for electronics, enabling technology and innovation.
  • Industrial Use: Robotics, power supply management, and process control systems.
  • Military: Radar systems, missile guidance, and secure communication systems.
  • Renewable Energy: Solar panel inverters, wind turbine controllers, and energy storage management systems.
  •
